    ELCOS motor control CIM 130

    SKU: 25019011200
    Availability:

    Available on backorder

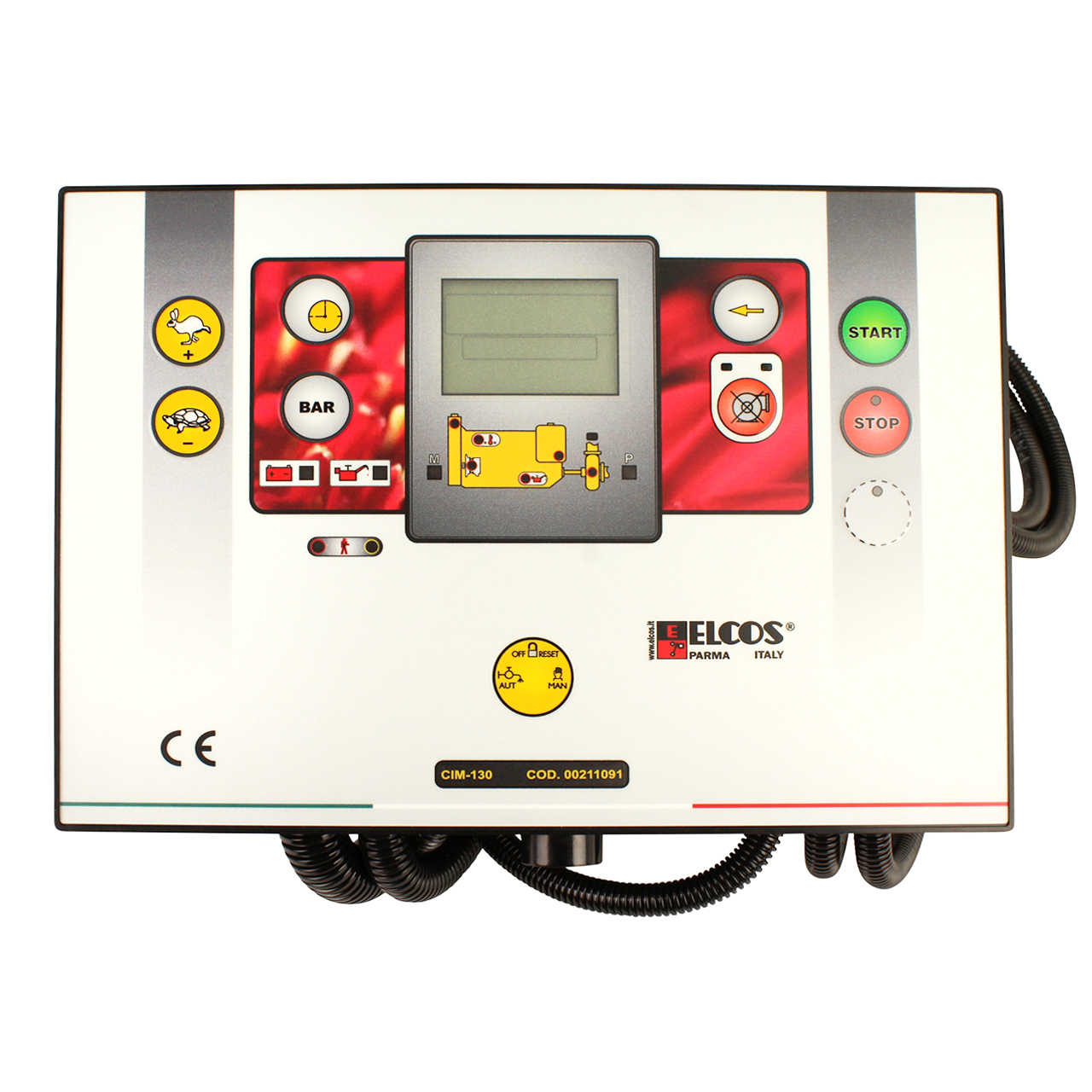

    ELCOS motor control CIM 130
    The diesel monitor CIM 130 offers the same functions as the CIM136, but without SMS function.
    With this type it is also possible to change the speed via a servomotor (various makes).
    Protects the irrigation unit in the event of the following malfunctions:
    • Low oil pressure
    • Overtemperature
    • Broken belt
    • Low coolant level
    • Low pump water pressure
    • Overpressure of the feed pump
    • Overspeed
    Digital displays of operational processes
    • Hour counter
    • Oil pressure gauge
    • Cooling water or oil thermometer
    • Tachometer
    • Pump water pressure gauge
    • Programmable timer
    • Fuel level
    • Voltmeter battery
    • Exclusion of pump protection
    • Oil and battery indicator lights
    • Protective intervention
    • Emergency stop
    Your advantage
    • Start/stop at the push of a button
    • Constant control
    • Simple menu navigation
    • Large control buttons
    • Under and over pressure adjustable in 0.5 bar increments
    Scope of delivery
    • Pressure switch for pump
    • Cable harness for motor
    • Operating instructions German
    • Assembly instructions
    • Working current relay

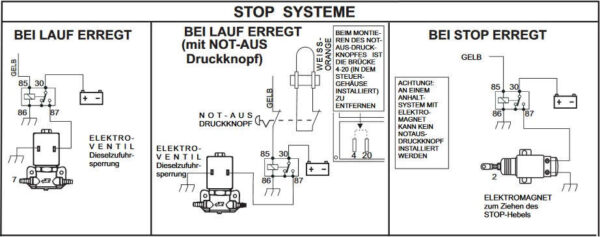

    When using an electromagnet to switch off the engine, a working current relay must be used!
    The motor monitoring can otherwise be damaged if the current consumption is too high.
    CIM-130 only works in conjunction with the ELCOS VAR-202 12V actuator
    Who is ELCOS?
    ELCOS SRL is a manufacturer of control panels for power generation units, irrigation pumps and many other possible applications that require an industrial diesel engine. Thanks to many years of experience, the company has been able to continually expand its product range. Today ELCOS offers a large selection of high-quality products for almost all areas of application in over 30 countries worldwide.
    Why should you buy ELCOS products.
    Quality, reliability and user-friendliness are the top priority for all parts.
    The convincing properties of the modules, the quick reaction times and high-quality services make ELCOS the first choice for modern professional companies. Convince yourself of the unsurpassed performance of the products!
    SKU: 25019011200 Category:
