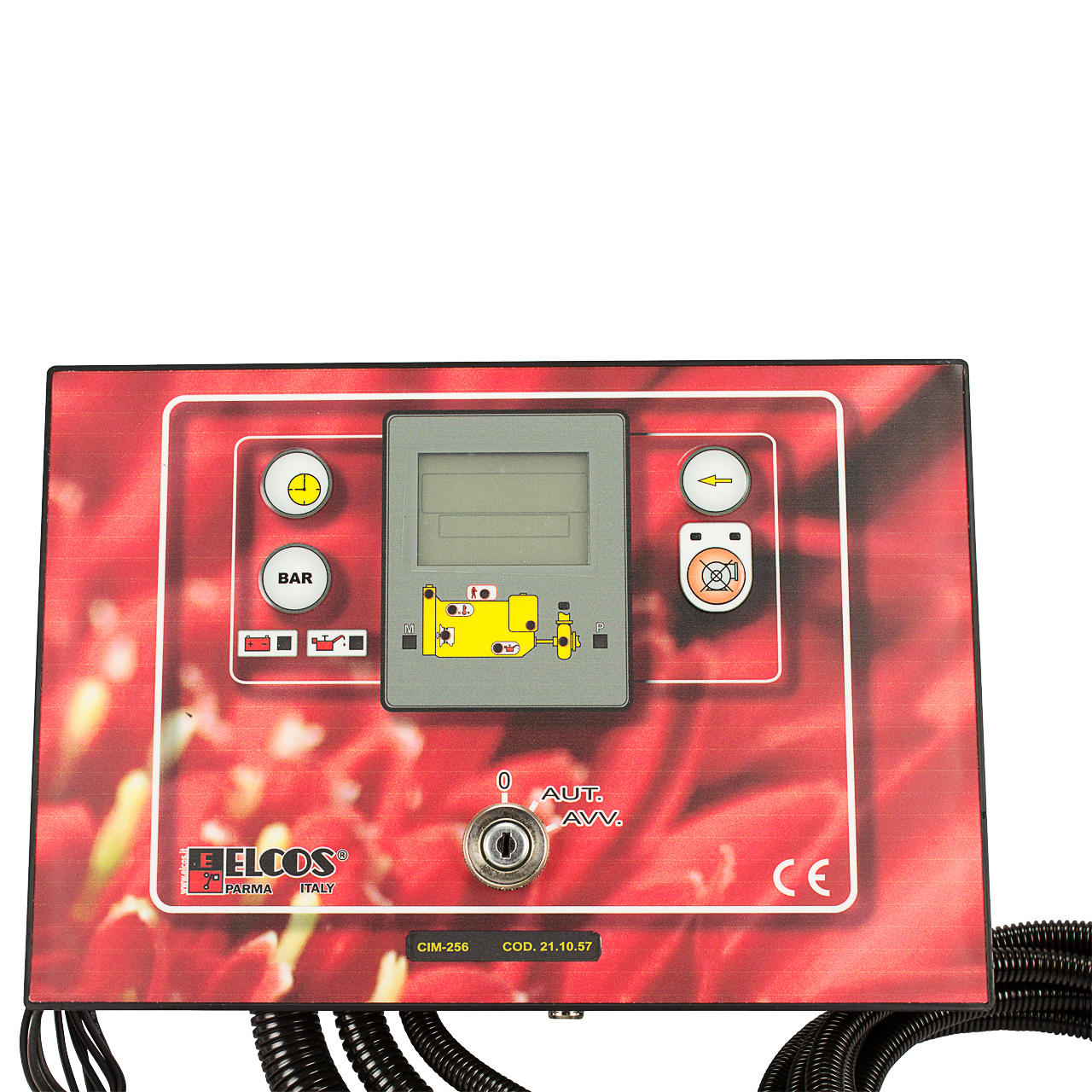

ELCOS motor control CIM 256/10

Engine monitoring / diesel monitor Elcos CIM 256/10

The diesel monitor CIM 256/10 offers the same functions as the CIM 250/10

but with the additional function of the GSM function

Motor and pump monitoring with digital display and SMS function

In the event of a shutdown, an SMS will be sent immediately to the set number.

This also includes the error code why the engine was switched off (e.g. water pressure too low). A status query is also possible at any time. The recipient contains a response SMS about the displayed parameters, timer, pressure, fuel level etc.

In order to use the SMS function, you need an activated SIM card with credit to send SMS.

For irrigation units to monitor the following functions:

•      Oil pressure

•      Motor temperature

•      V-belt

•      Fuel

•      Coolant

•      Pump monitoring (under-overpressure)

For installation in the protective grille/sheet metal

•      Constant control through GSM function

•      Simple menu navigation

•      Large control buttons

•      Under and over pressure adjustable in 0.5 bar increments

•      Pressure switch for pump

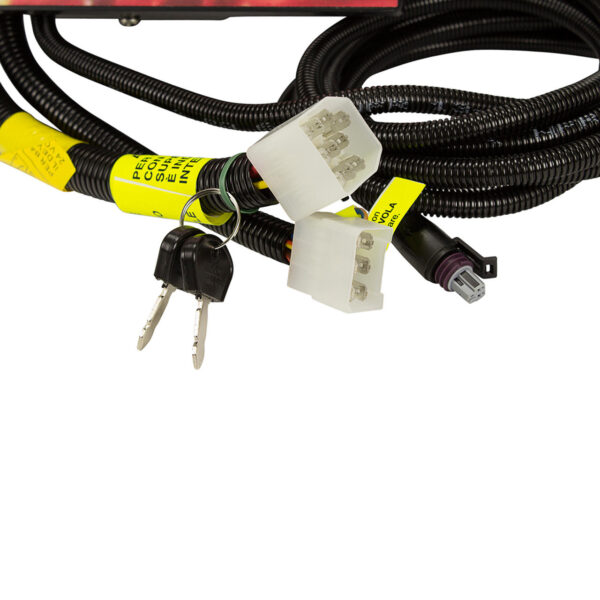

•      Wiring harness for motor

•      User manual German

•      Assembly instructions

•      Operating current relay

When using an electromagnet to switch off the engine, a working current relay must be used!

The motor monitoring can otherwise be damaged if the current consumption is too high.

Engine monitoring, engine control, diesel monitor, monitoring system, control, engine protection, control center, control housing

ELCOS SRL is a manufacturer of control panels for power generation units, irrigation pumps and many other possible applications that require an industrial diesel engine. Thanks to many years of experience, the company has been able to continually expand its product range. Today ELCOS offers a large selection of high-quality products for almost all areas of application in over 30 countries worldwide.

Quality, reliability and user-friendliness are the top priority for all parts.

The convincing properties of the modules, the quick reaction times and high-quality services make ELCOS the first choice for modern professional companies. Convince yourself of the unsurpassed performance of the products!
