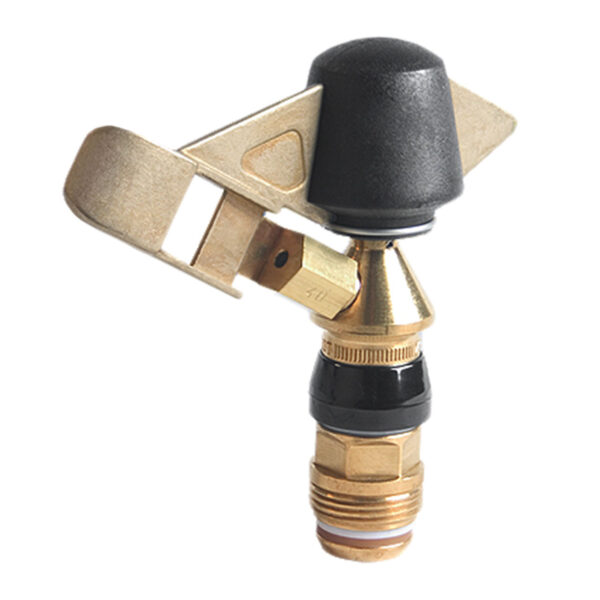

PERROT ZS 30 circular sprinkler

The PERROT ZS 30 circle sprinkler has Proven worldwide, especially as a special sprinkler for frost protection. Maximum operational safety down to -10 °C. Equipped with a spring protection cap that prevents the torsion spring from freezing and being damaged. The unique spiral nozzle, which ensures homogeneous water distribution and ensures absolute operational safety. The combination of proven materials in conjunction with the latest technology guarantees a long service life. They also save energy and water, thereby reducing operating costs. They reliably deliver rain to order.

1-nozzle

3.5 – 5.2 mm

0.69 – 2.04 m³/h

13.0 – 16.5 m

2.5 – 4.5 mm

3/4″ AG

30°

Full circle sprinkler ZS30

•      Use down to -10°C

•      Material: brass, stainless steel, high-quality plastic

•      Spring protection cap

Full circle sprinkler with 30° jet rise, Spiral nozzle, sand protection device, rotation speed <1 minute, connection 3/4″ external thread.

Pipe axle, guide bushing, elbow, rocker arm and nozzle made of brass. Stainless steel torsion spring. Spring protection cap made of plastic.

Performance information can be found under Documents” at Performance diagram”

Scope of delivery: Sprinkler incl. standard nozzle

Standard nozzle ex works: 4.0 mm

If the standard nozzle is not sufficient, you must order a suitable nozzle.

(The standard nozzle cannot be changed)
